[PROJ] Matter::ColorControl 클러스터 개발 예제 (ESP32)

Matter - ColorControl Cluster Developing Example using ESP32 SoC

Matter의 조명과 관련된 클러스터 중 가장 내용이 방대한 ColorControl 클러스터(cluster)를 지난번 LevelControl 클러스터 개발 예제때와 마찬가지로 WS2812 테스트보드에 구현 후 테스트해보자

[PROJ] Matter::LevelControl 클러스터 개발 예제 (ESP32)

[PROJ] Matter::LevelControl 클러스터 개발 예제 (ESP32)

Color Control 클러스터의 Matter Spec은 아래 링크에서 참고

Matter Specification - Color Control Cluster

Matter Specification - Color Control Cluster

1. 소스코드 커밋

• 저장소명: matter-esp32-ws2812
• commit id: 56df82be9a5cebb9412d925e405f0e9ad02b13dc
  ※ 별도로 태그를 달지 않고 main 브랜치에 통합
• 2023년 5월 18일에 Matter 1.1이 공식 release되었는데, 이에 맞춰서 SDK 버전도 함께 업데이트

https://github.com/YOGYUI/matter-esp32-ws2812

GitHub - YOGYUI/matter-esp32-ws2812

2. ColorControl Light 클래스 구현

밝기에 해당하는 'level', 색상에 해당하는 'hue(색상)', 'saturation(채도)'의 속성값 변경 명령에 대한 응답 코드를 작성해야 한다

2.1. device_colorcontrol_light.h

class CDeviceColorControlLight : public CDevice
{
public:
    CDeviceColorControlLight();

    bool matter_add_endpoint() override;
    bool matter_init_endpoint() override;
    void matter_on_change_attribute_value(
        esp_matter::attribute::callback_type_t type,
        uint32_t cluster_id,
        uint32_t attribute_id,
        esp_matter_attr_val_t *value
    ) override;
    void matter_update_all_attribute_values() override;

public:
    void toggle_state_action() override;

private:
    bool m_matter_update_by_client_clus_onoff_attr_onoff;
    bool m_matter_update_by_client_clus_levelcontrol_attr_currentlevel;
    bool m_matter_update_by_client_clus_colorcontrol_attr_currenthue;
    bool m_matter_update_by_client_clus_colorcontrol_attr_currentsaturation;

    void matter_update_clus_onoff_attr_onoff();
    void matter_update_clus_levelcontrol_attr_currentlevel();
    void matter_update_clus_colorcontrol_attr_currenthue();
    void matter_update_clus_colorcontrol_attr_currentsaturation();
};

2.2. device_colorcontrol_light.cpp

#include "device_colorcontrol_light.h"
#include "system.h"
#include "logger.h"
#include "ws2812.h"
#include <esp_matter_endpoint.h>
#include <esp_matter_attribute_utils.h>

CDeviceColorControlLight::CDeviceColorControlLight()
{
    m_matter_update_by_client_clus_onoff_attr_onoff = false;
    m_matter_update_by_client_clus_levelcontrol_attr_currentlevel = false;
    m_matter_update_by_client_clus_colorcontrol_attr_currenthue = false;
    m_matter_update_by_client_clus_colorcontrol_attr_currentsaturation = false;
    m_state_brightness = MAX(1, GetWS2812Ctrl()->get_brightness());
    m_state_onoff = m_state_brightness ? true : false;
}

bool CDeviceColorControlLight::matter_add_endpoint()
{
    esp_matter::node_t *root = GetSystem()->get_root_node();

    esp_matter::endpoint::extended_color_light::config_t config_endpoint;
    config_endpoint.on_off.on_off = false;
    config_endpoint.on_off.lighting.start_up_on_off = nullptr;
    config_endpoint.level_control.current_level = m_state_brightness;
    config_endpoint.level_control.lighting.min_level = 1;
    config_endpoint.level_control.lighting.max_level = 254;
    config_endpoint.level_control.lighting.start_up_current_level = m_state_brightness;

    uint8_t flags = esp_matter::ENDPOINT_FLAG_DESTROYABLE;
    m_endpoint = esp_matter::endpoint::extended_color_light::create(root, &config_endpoint, flags, nullptr);
    if (!m_endpoint) {
        GetLogger(eLogType::Error)->Log("Failed to create endpoint");
        return false;
    }

    return CDevice::matter_add_endpoint();
}

bool CDeviceColorControlLight::matter_init_endpoint()
{
    esp_err_t ret;

    esp_matter::cluster::color_control::feature::hue_saturation::config_t cfg;
    cfg.current_hue = 0;
    cfg.current_saturation = 0;
    esp_matter::cluster_t *cluster = esp_matter::cluster::get(m_endpoint, chip::app::Clusters::ColorControl::Id);
    ret = esp_matter::cluster::color_control::feature::hue_saturation::add(cluster, &cfg);
    if (ret != ESP_OK) {
        GetLogger(eLogType::Warning)->Log("Failed to add hue_saturation feature (ret: %d)", ret);
    }

    /**
    * feature map & color capabilities 속성을 바꿔준다 (HS만 활성화)
    * 3.2.5. Features
    * | Bit | Code |     Feature       |
    * |  0  | HS   | Hue/Saturation    |
    * |  1  | EHUE | Enhanced Hue      |
    * |  2  | CL   | Color Loop        |
    * |  3  | XY   | XY                |
    * |  4  | CT   | Color Temperature |
    */
    esp_matter::attribute_t *attribute = esp_matter::attribute::get(cluster, chip::app::Clusters::Globals::Attributes::FeatureMap::Id);
    esp_matter_attr_val_t val = esp_matter_invalid(NULL);
    esp_matter::attribute::get_val(attribute, &val);
    val.val.u32 = 0x13;
    ret = esp_matter::attribute::set_val(attribute, &val);
    if (ret != ESP_OK) {
        GetLogger(eLogType::Warning)->Log("Failed to change feature map value (ret: %d)", ret);
    }
    attribute = esp_matter::attribute::get(cluster, chip::app::Clusters::ColorControl::Attributes::ColorCapabilities::Id);
    esp_matter::attribute::get_val(attribute, &val);
    val.val.u16 = 0x13;
    ret = esp_matter::attribute::set_val(attribute, &val);
    if (ret != ESP_OK) {
        GetLogger(eLogType::Warning)->Log("Failed to change color capabilities value (ret: %d)", ret);
    }

    return true;
}

void CDeviceColorControlLight::matter_on_change_attribute_value(esp_matter::attribute::callback_type_t type, uint32_t cluster_id, uint32_t attribute_id, esp_matter_attr_val_t *value)
{
    if (type == esp_matter::attribute::callback_type_t::PRE_UPDATE) {
        if (cluster_id == chip::app::Clusters::OnOff::Id) {
            if (attribute_id == chip::app::Clusters::OnOff::Attributes::OnOff::Id) {
                GetLogger(eLogType::Info)->Log("MATTER::PRE_UPDATE >> cluster: OnOff(0x%04X), attribute: OnOff(0x%04X), value: %d", cluster_id, attribute_id, value->val.b);
                if (!m_matter_update_by_client_clus_onoff_attr_onoff) {
                    m_state_onoff = value->val.b;
                    if (m_state_onoff) {
                        GetWS2812Ctrl()->set_brightness(m_state_brightness);
                    } else {
                        GetWS2812Ctrl()->set_brightness(0);
                    }
                } else {
                    m_matter_update_by_client_clus_onoff_attr_onoff = false;
                }
            }
        } else if (cluster_id == chip::app::Clusters::LevelControl::Id) {
            if (attribute_id == chip::app::Clusters::LevelControl::Attributes::CurrentLevel::Id) {
                GetLogger(eLogType::Info)->Log("MATTER::PRE_UPDATE >> cluster: LevelControl(0x%04X), attribute: CurrentLevel(0x%04X), value: %d", cluster_id, attribute_id, value->val.u8);
                if (!m_matter_update_by_client_clus_levelcontrol_attr_currentlevel) {
                    m_state_brightness = value->val.u8;
                    GetWS2812Ctrl()->set_brightness(value->val.u8);
                } else {
                    m_matter_update_by_client_clus_levelcontrol_attr_currentlevel = false;
                }
            }
        } else if (cluster_id == chip::app::Clusters::ColorControl::Id) {
            if (attribute_id == chip::app::Clusters::ColorControl::Attributes::CurrentHue::Id) {
                GetLogger(eLogType::Info)->Log("MATTER::PRE_UPDATE >> cluster: ColorControl(0x%04X), attribute: CurrentHue(0x%04X), value: %d", cluster_id, attribute_id, value->val.u8);
                if (!m_matter_update_by_client_clus_colorcontrol_attr_currenthue) {
                    m_state_hue = value->val.u8;
                    int temp = REMAP_TO_RANGE(value->val.u8, 254, 360);
                    GetWS2812Ctrl()->set_hue(temp);
                } else {
                    m_matter_update_by_client_clus_colorcontrol_attr_currenthue = false;
                }
            } else if (attribute_id == chip::app::Clusters::ColorControl::Attributes::CurrentSaturation::Id) {
                GetLogger(eLogType::Info)->Log("MATTER::PRE_UPDATE >> cluster: ColorControl(0x%04X), attribute: CurrentSaturation(0x%04X), value: %d", cluster_id, attribute_id, value->val.u8);
                if (!m_matter_update_by_client_clus_colorcontrol_attr_currentsaturation) {
                    m_state_saturation = value->val.u8;
                    int temp = REMAP_TO_RANGE(value->val.u8, 254, 100);
                    GetWS2812Ctrl()->set_saturation(temp);
                } else {
                    m_matter_update_by_client_clus_colorcontrol_attr_currentsaturation = false;
                }
            }
            /*
            else if (attribute_id == chip::app::Clusters::ColorControl::Attributes::ColorTemperatureMireds::Id) {
                GetLogger(eLogType::Info)->Log("MATTER::PRE_UPDATE >> cluster: ColorControl(0x%04X), attribute: ColorTemperatureMireds(0x%04X), value: %d", cluster_id, attribute_id, value->val.u8);
                uint32_t temp = REMAP_TO_RANGE_INVERSE(value->val.u16, 1000000);
                GetWS2812Ctrl()->set_temperature(temp);
            }
            */
        }
    }
}

void CDeviceColorControlLight::matter_update_all_attribute_values()
{
    matter_update_clus_onoff_attr_onoff();
    matter_update_clus_levelcontrol_attr_currentlevel();
    matter_update_clus_colorcontrol_attr_currenthue();
    matter_update_clus_colorcontrol_attr_currentsaturation();
}

void CDeviceColorControlLight::matter_update_clus_onoff_attr_onoff()
{
    esp_err_t ret;
    uint32_t cluster_id, attribute_id;
    esp_matter_attr_val_t val;

    m_matter_update_by_client_clus_onoff_attr_onoff = true;
    cluster_id = chip::app::Clusters::OnOff::Id;
    attribute_id = chip::app::Clusters::OnOff::Attributes::OnOff::Id;
    val = esp_matter_bool((bool)m_state_onoff);
    ret = esp_matter::attribute::update(m_endpoint_id, cluster_id, attribute_id, &val);
    if (ret != ESP_OK) {
        GetLogger(eLogType::Error)->Log("Failed to update attribute (%d)", ret);
    }
}

void CDeviceColorControlLight::matter_update_clus_levelcontrol_attr_currentlevel()
{
    esp_err_t ret;
    uint32_t cluster_id, attribute_id;
    esp_matter_attr_val_t val;

    m_matter_update_by_client_clus_levelcontrol_attr_currentlevel = true;
    cluster_id = chip::app::Clusters::LevelControl::Id;
    attribute_id = chip::app::Clusters::LevelControl::Attributes::CurrentLevel::Id;
    val = esp_matter_uint8(m_state_brightness);
    ret = esp_matter::attribute::update(m_endpoint_id, cluster_id, attribute_id, &val);
    if (ret != ESP_OK) {
        GetLogger(eLogType::Error)->Log("Failed to update attribute (%d)", ret);
    }
}

void CDeviceColorControlLight::matter_update_clus_colorcontrol_attr_currenthue()
{
    esp_err_t ret;
    uint32_t cluster_id, attribute_id;
    esp_matter_attr_val_t val;

    m_matter_update_by_client_clus_colorcontrol_attr_currenthue = true;
    cluster_id = chip::app::Clusters::ColorControl::Id;
    attribute_id = chip::app::Clusters::ColorControl::Attributes::CurrentHue::Id;
    val = esp_matter_uint8(m_state_hue);
    ret = esp_matter::attribute::update(m_endpoint_id, cluster_id, attribute_id, &val);
    if (ret != ESP_OK) {
        GetLogger(eLogType::Error)->Log("Failed to update attribute (%d)", ret);
    }
}

void CDeviceColorControlLight::matter_update_clus_colorcontrol_attr_currentsaturation()
{
    esp_err_t ret;
    uint32_t cluster_id, attribute_id;
    esp_matter_attr_val_t val;

    m_matter_update_by_client_clus_colorcontrol_attr_currentsaturation = true;
    cluster_id = chip::app::Clusters::ColorControl::Id;
    attribute_id = chip::app::Clusters::ColorControl::Attributes::CurrentSaturation::Id;
    val = esp_matter_uint8(m_state_saturation);
    ret = esp_matter::attribute::update(m_endpoint_id, cluster_id, attribute_id, &val);
    if (ret != ESP_OK) {
        GetLogger(eLogType::Error)->Log("Failed to update attribute (%d)", ret);
    }
}

void CDeviceColorControlLight::toggle_state_action()
{
    if (m_state_onoff) {
        GetWS2812Ctrl()->set_brightness(0);
        m_state_onoff = false;
    } else {
        GetWS2812Ctrl()->set_brightness(m_state_brightness);
        m_state_onoff = true;
    }
    matter_update_all_attribute_values();
}

Color Control 클러스터는 Hue/Saturation 기반, Enhanced Hue, Color Loop, XY, Color Temperature 등 총 5종류의 색상 제어 알고리즘에 대응할 수 있다 (자세한 내용은 matter spec 확인)

본 예제에서는 Color Temperature 및 Enhanced Hue, Hue/Saturation 3개 제어 방식을 활성화하도록 한다

※ 색상쪽은 완전 문외한이라...

2.3. system.cpp

bool CSystem::initialize()
{
    GetLogger(eLogType::Info)->Log("Start Initializing System");

    esp_err_t ret = nvs_flash_init();
    if (ret == ESP_ERR_NVS_NO_FREE_PAGES || ret == ESP_ERR_NVS_NEW_VERSION_FOUND) {
        ESP_ERROR_CHECK(nvs_flash_erase());
        ret = nvs_flash_init();
    }
    if (ret != ESP_OK) {
        GetLogger(eLogType::Error)->Log("Failed to initialize nsv flash (%d)", ret);
        return false;
    }

    if (!init_default_button()) {
        GetLogger(eLogType::Warning)->Log("Failed to init default on-board button");
    }

    // create matter root node
    esp_matter::node::config_t node_config;
    snprintf(node_config.root_node.basic_information.node_label, sizeof(node_config.root_node.basic_information.node_label), PRODUCT_NAME);
    m_root_node = esp_matter::node::create(&node_config, matter_attribute_update_callback, matter_identification_callback);
    if (!m_root_node) {
        GetLogger(eLogType::Error)->Log("Failed to create root node");
        return false;
    }
    GetLogger(eLogType::Info)->Log("Root node (endpoint 0) added");

    // prevent endpoint id increment when board reset
    matter_set_min_endpoint_id(1);

    // start matter
    ret = esp_matter::start(matter_event_callback);
    if (ret != ESP_OK) {
        GetLogger(eLogType::Error)->Log("Failed to start matter (ret: %d)", ret);
        return false;
    }
    GetLogger(eLogType::Info)->Log("Matter started");

    // enable chip shell
    // esp_matter::console::diagnostics_register_commands();
    // esp_matter::console::init();

    GetWS2812Ctrl()->initialize();
    // set matter endpoints
    CDevice *dev = nullptr;
#if LIGHT_TYPE == 0
    dev = new CDeviceOnOffLight();
#elif LIGHT_TYPE == 1
    dev = new CDeviceLevelControlLight();
#elif LIGHT_TYPE == 2
    dev = new CDeviceColorControlLight();
#endif
    if (dev && dev->matter_add_endpoint()) {
        m_device_list.push_back(dev);
    } else {
        return false;
    }

    GetLogger(eLogType::Info)->Log("System Initialized");
    print_system_info();
    // print_matter_endpoints_info();

    return true;
}

definition.h에서 LIGHT_TYPE 값을 2로 설정하면 ColorControl 객체가 생성된다

2.4. WS2812.h

Hue, Saturation에 대응하여 RGB 값으로 바꾸기 위해 Espressif사의 예제코드를 그대로 복사-붙여넣기해서 사용했다

struct rgb_t
{
    uint8_t r, g, b;
    rgb_t(uint8_t red = 0, uint8_t green = 0, uint8_t blue = 0) {
        r = red;
        g = green;
        b = blue;
    }
};

struct hsv_t
{
    /**
     * @brief
     * hue range: [0, 360] degree
     * saturation range: [0, 100]
     * value range: [0, 100]
     */
    uint32_t hue;           // 색상
    uint32_t saturation;    // 채도
    uint32_t value;         // 명도
    hsv_t(uint32_t h = 0, uint32_t s = 0, uint32_t v = 100) {
        hue = MIN(360, h);
        saturation = MIN(100, s);
        value = MIN(100, v);
    }

    rgb_t conv2rgb() {
        /**
         * @brief HSV to RGB conversion formula
         * @ref https://en.wikipedia.org/wiki/HSL_and_HSV
         */
        rgb_t rgb;

        uint32_t h = hue % 360;
        uint32_t rgb_max = value * 2.55f;
        uint32_t rgb_min = rgb_max * (100 - saturation) / 100.0f;

        uint32_t i = h / 60;
        uint32_t diff = h % 60;

        // RGB adjustment amount by hue
        uint32_t rgb_adj = (rgb_max - rgb_min) * diff / 60;

        switch (i) {
        case 0:
            rgb.r = rgb_max;
            rgb.g = rgb_min + rgb_adj;
            rgb.b = rgb_min;
            break;
        case 1:
            rgb.r = rgb_max - rgb_adj;
            rgb.g = rgb_max;
            rgb.b = rgb_min;
            break;
        case 2:
            rgb.r = rgb_min;
            rgb.g = rgb_max;
            rgb.b = rgb_min + rgb_adj;
            break;
        case 3:
            rgb.r = rgb_min;
            rgb.g = rgb_max - rgb_adj;
            rgb.b = rgb_max;
            break;
        case 4:
            rgb.r = rgb_min + rgb_adj;
            rgb.g = rgb_min;
            rgb.b = rgb_max;
            break;
        default:
            rgb.r = rgb_max;
            rgb.g = rgb_min;
            rgb.b = rgb_max - rgb_adj;
            break;
        }

        return rgb;
    }
};

또한, WS2812 제어 시 일반 GPIO Toggle 방식으로는 한계가 있어서 esp-idf의 RMT (Remote Control Transceiver) 모듈을 활용했다 (nearly 100us 단위로 GPIO 신호 제어가 가능하다)

bool CWS2812Ctrl::init_rmt()
{
    esp_err_t ret;

    rmt_tx_channel_config_t rmt_tx_ch_cfg;
    rmt_tx_ch_cfg.gpio_num = GPIO_PIN_WS2812_DATA;
    rmt_tx_ch_cfg.clk_src = RMT_CLK_SRC_DEFAULT;
    rmt_tx_ch_cfg.resolution_hz = RMT_RESOLUTION_HZ;
    rmt_tx_ch_cfg.mem_block_symbols = 64;
    rmt_tx_ch_cfg.trans_queue_depth = 4;
    rmt_tx_ch_cfg.flags.invert_out = 0;
    rmt_tx_ch_cfg.flags.io_od_mode = 0;
    rmt_tx_ch_cfg.flags.with_dma = 0;
    ret = rmt_new_tx_channel(&rmt_tx_ch_cfg, &m_rmt_ch_handle);
    if (ret != ESP_OK) {
        GetLogger(eLogType::Error)->Log("Failed to create RMT TX channel (ret %d)", ret);
        return false;
    }

    m_rmt_enc_base = new rmt_encoder_t();
    if (!m_rmt_enc_base) {
        GetLogger(eLogType::Error)->Log("Failed to create RMT base encoder (ret %d)", ret);
        return false;
    }
    m_rmt_enc_base->encode = func_rmt_encode;
    m_rmt_enc_base->reset = func_rmt_reset;
    m_rmt_enc_base->del = func_rmt_delete;

    rmt_bytes_encoder_config_t rmt_bytes_enc_cfg;
    rmt_bytes_enc_cfg.bit0.duration0 = 0.3 * RMT_RESOLUTION_HZ / 1000000;  // T0H=300ns
    rmt_bytes_enc_cfg.bit0.level0 = 1;
    rmt_bytes_enc_cfg.bit0.duration1 = 0.9 * RMT_RESOLUTION_HZ / 1000000;  // T0L=900ns
    rmt_bytes_enc_cfg.bit0.level1 = 0;
    rmt_bytes_enc_cfg.bit1.duration0 = 0.9 * RMT_RESOLUTION_HZ / 1000000;  // T1H=900ns
    rmt_bytes_enc_cfg.bit1.level0 = 1;
    rmt_bytes_enc_cfg.bit1.duration1 = 0.3 * RMT_RESOLUTION_HZ / 1000000;  // T1L=300ns
    rmt_bytes_enc_cfg.bit1.level1 = 0;
    rmt_bytes_enc_cfg.flags.msb_first = 1;
    ret = rmt_new_bytes_encoder(&rmt_bytes_enc_cfg, &m_rmt_enc_bytes);
    if (ret != ESP_OK) {
        GetLogger(eLogType::Error)->Log("Failed to create RMT bytes encoder (ret %d)", ret);
        return false;
    }

    rmt_copy_encoder_config_t rmt_copy_enc_cfg;
    ret = rmt_new_copy_encoder(&rmt_copy_enc_cfg, &m_rmt_enc_copy);
    if (ret != ESP_OK) {
        GetLogger(eLogType::Error)->Log("Failed to create RMT copy encoder (ret %d)", ret);
        return false;
    }

    uint32_t reset_ticks = RMT_RESOLUTION_HZ / 1000000 * 300 / 2; // reset code = 300us
    m_rmt_reset_code.duration0 = reset_ticks;
    m_rmt_reset_code.level0 = 0;
    m_rmt_reset_code.duration1 = reset_ticks;
    m_rmt_reset_code.level1 = 0;

    // set enable rmt channel
    ret = rmt_enable(m_rmt_ch_handle);
    if (ret != ESP_OK) {
        GetLogger(eLogType::Error)->Log("Failed to enable RMT (ret %d)", ret);
        return false;
    }

    return true;
}

RMT에 대한 자세한 설명과 예시는 Espressif의 공식 문서를 참고

https://docs.espressif.com/projects/esp-idf/en/latest/esp32/api-reference/peripherals/rmt.html

Remote Control Transceiver (RMT) - ESP32 - — ESP-IDF Programming Guide latest documentation

3. DEMO

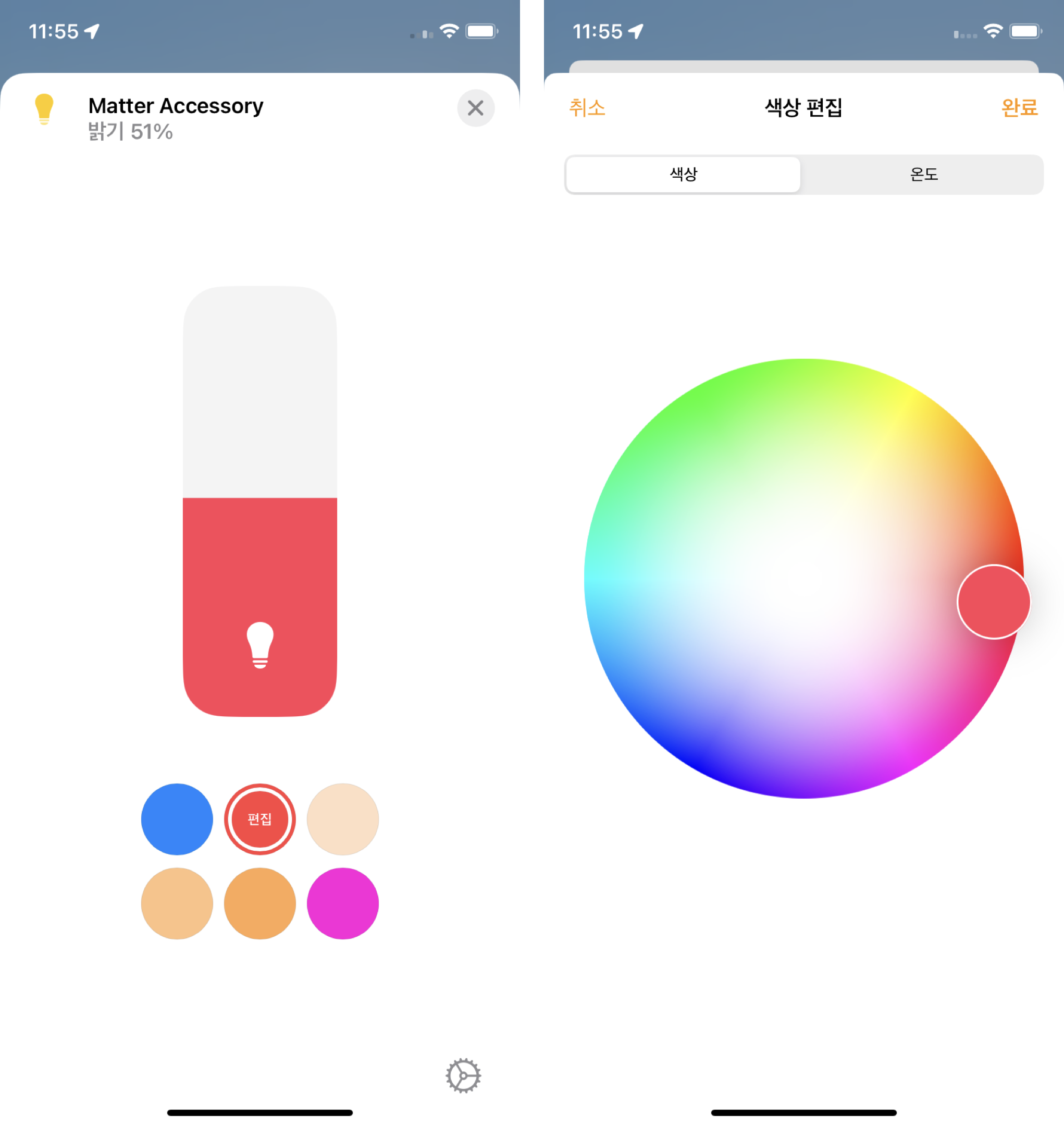

Matter commissioning 과정은 다른 글들에서 언급한 것과 차이가 없어서 이 글에서는 스킵하고 실제로 Apple Home 앱에서 제어되는 데모만 살펴보도록 한다

※ 근래 Matter 제품 출시 준비때문에 PAI, PAA, CD, DAC 작업하느라 간단한 예제 돌려볼 시간도 부족하다 ㅠㅠ

색상 제어의 세계는 나름 심오해서 약간 빡센 공부가 필요할 것 같다... (클러스터 스펙 문서 한번 훑어보는 데만도 반나절 이상이 소요됐다;;)



어쨌든 Matter 클러스터 구현과 홈 IoT 플랫폼과의 연동이 어느 정도 만족스러운 수준으로 구동되는 것은 확인했으니, 제품 양산 시 알게되는 새로운 내용에 대해서는 별도의 글로 포스팅하도록 한다
